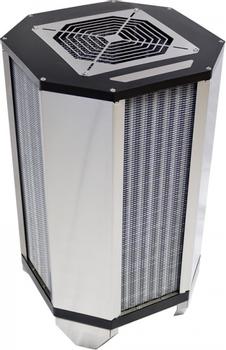

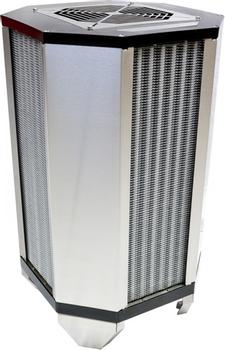

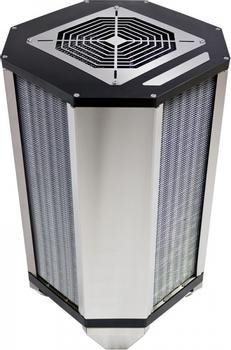

AQUA COMPUTER airplex Gigant 1680 - Aluminium

airplex GIGANT 1680, aluminum fins

The airplex GIGANT series shows similarities to the renowned airplex modularity system series, but the airplex GIGANT series readiators are designed as stand-alone devices and offer a much higher cooling capacity. The airplex GIGANT series is perfectly suited for fanless (and threrefore noiseless) operation, installation of fans will unleash its immense cooling capacity. One 170-180 mm fan can be installed into the top cover of the radiator as well as into the base, alternatively 140 mm fans can be installed directly in front of the fins using optonal fan rails (not included in delivery) to further increase the cooling capacity.
Key features of the airplex GIGANT series:
- extremely large fin surface
- fin spacing optimized for low air flow and excellent passive cooling capacity
- removable side covers made from stainless steel for easy cleaning
- internal ports inside the radiator can for example be used to install a reservoir inside the radiator
- not welding residues in the water circuit (since no welding is done during production)
- flexible fan installation options
- low flow resistance
- cooling liquid has no direct contact to aluminum (pipes are made of copper)
- approved for a pressure of up to 0.8 bar
Technical details:
Connection threads: G1/4
Dimensions: ca. 310 x 310 x 540 mm
Weight: 9.9 kg
Scope of delivery:
One radiator (ready for connection)
Individual name engraving an the type plate available:
As a special service for our airplex GIGANT customers, the radiators can be manufactured with an additional engraving on the type plate free of charge. In order to benefit from this offer, Aqua Computer has to receive your desired text prior to production of the radiator. Special engraving is not possible once the radiator has been manufactured. During the checkout process, please use the annotations field to input your desired text (your name, call sign or nickname). Otherwise, each radiator will be equipped with a standard type plate.
Radiators with special engravings are exempt from returns and refunds and may require some extra time for production.
