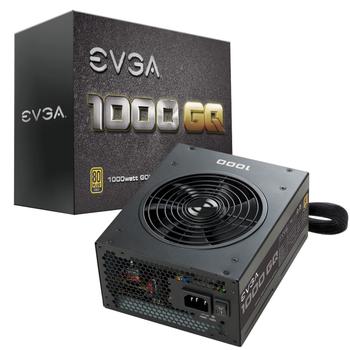

EVGA PSU EVGA 1000W GQ Modular Gold Rated 80_
You have to log in to shop/see prices.
|
|
EVGA PSU EVGA 1000W GQ Modular Gold Rated 80_
-
Power
1000W
-
80 PLUS certification
80 PLUS Gold
|
Description
Specifications
Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)
Introducing the latest in the EVGA power supply lineup; the GQ series. These power supplies take some of the best features from EVGA�s award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. These new power supplies are 80 Plus Gold rated and offer an outstanding 5 Year Warranty that's backed by world class EVGA support.
| Total effekt | 1000 W |

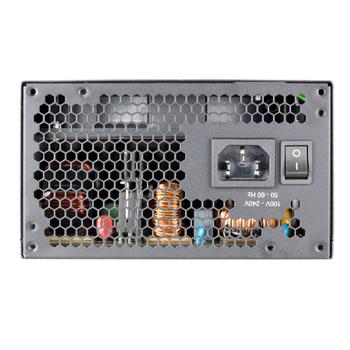

| AC-inspänning | 100 - 240 V |
| Växelström Frekvens | 50 - 60 hz |
| Ström | 16 A |
| Power Factor Correction (PFC) typ | Aktiv |
| Kombinerad effekt (+3,3 V) | 120 W |
| Kombinerad effekt (+12 V) | 999,6 W |
| Kombinerad effekt (+5 V) | 120 W |
| Kombinerad effekt (-12V) | 6 W |
| Kombinerad effekt (+5 VSB) | 15 W |
| Max utström (+3,3 V) | 24 A |
| Max utström (+12 V) | 83,3 A |
| Max utström (+5 V) | 24 A |
| Max utström (-12V) | 0,5 A |
| Max utström (+5 VSB) | 3 A |
| Moderkort strömkontakt | 24-pin ATX |
| Längd, moderkortets strömförsörjningskabel | 60 cm |
| Antalet SATA strömkontakter | 12 |
| SATA-nätkabelns längd | 550,650,750 mm |
| Peripheral (Molex) strömkontakter (4-pin) | 3 |
| Tillbehörsnätkabelns (Molex) längd | 550,650,750 mm |
| PCI Express strömkontakter (6 +2 pin) | 10 |
| PCI Express-nätkabelns längd | 65 cm |
| CPU strömkontakt (4 +4 pin) | Yes |
| CPU-strömkabelns längd | 65 cm |
| ATX strömkontakt (24-pin) | Yes |
| Anslutning för diskettenhet | Yes |
| Diskettenhetens kabellängd | 10 cm |
| Typ av kablage | Semimodulär |
| Ändamål | PC |
| Strömförsörjningsenhet formfaktor | ATX |
| 80 plus-certifiering | 80 PLUS Gold |
| Medeltid mellan fel (MTBF) | 100000 h |
| RoHS-efterlevnad | Yes |
| Certifiering | TUV, CB, CE, FCC, RCM, cTUVus, WEEE |
| Produktens färg | Svart |
| fläktdiameter | 13,5 cm |
| Temperatur vid drift | 0 - 50 ° C |
| Bredd | 150 mm |
| Djup | 180 mm |
| Höjd | 85 mm |
| Vikt | 3,17 kg |
