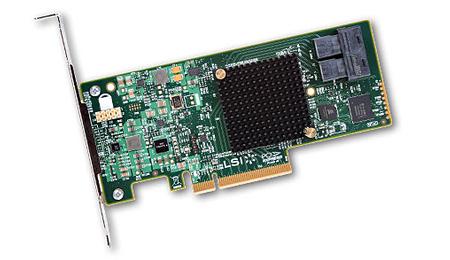

9300-8i Demanding applications may require dozens of internal drives servicing thousands of users. The LSI SAS 9300-8i 12Gb/s SAS Host Bus Adapter provides bandwidth for critical applications in 1U/2U servers and workstations. Support for both SAS and SATA drives gives flexibility in designing storage architectures and helps protect existing infrastructure investments. Connect up to 1024 SAS and SATA devices with 8 internal 12Gb/s SAS and SATA ports Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included) Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity I/O Controller LSI SAS3008 / Fusion MPT™ 2.5 Data Transfer Rates 12Gb/s SAS 3.0 compliant Host Bus Type x8 lane PCI Express® 3.0 compliant Physical Dimensions Low profile (2. 6” x 6.0”) Internal Connectors 2 Mini-SAS HD SFF8643 Brackets Full height and low profile vented Cable Support Passive copper Operating Voltage +12V +/-8%; 3.3V +/-9% PCI Power 13W Devices Supported 1024 Non-RAID SAS/SATA devices Operating Temperature 0°C to 55°C Operating Humidity 5% to 90% non-condensing MTBF >2,800,000 hours Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE OS Support Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. Visit lsi for the most complete list of supported operating systems. Warranty 3 years, free advanced technical support, advanced replacement option Internal Ports 8
