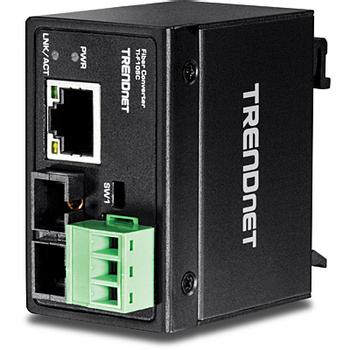

TRENDNET 100Base-FX Multi-Mode SC
You have to log in to shop/see prices.
|
|
TRENDNET 100Base-FX Multi-Mode SC
|
Description
Specifications
TRENDnet’s TI-F10SC is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates building-to-building or long distance networking with 100Base-FX Multi-Mode fiber over distances of up to 2 km (1.2 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately: model TI-M6024.
| Maximal dataöverföringshastighet | 200 Mbit/s |
| Omvandlare inmatningsgränssnitt | 100Base-TX |
| Omvandlare utgränssnittet | 100Base-FX |
| Kommunikationsstandarder | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Ethernet-gränssnitt typ | Snabb Ethernet |
| Datahastighet för Ethernet-LAN | 10,100 Mbit/s |
| Koppar Ethernet-kablar teknik | 10BASE-T,100BASE-TX |
| Fiber Ethernet-kablar teknik | 100BASE-FX |
| Flödeskontroll | Yes |
| Autonegotiation | Yes |
| Duplex systemet | Fullständig, Halv |
| Anslutningsteknologi | Kabel |
| Antalet Ethernet (RJ-45) anslutningar | 1 |
| Fiberportar kvantitet | 1 |
| Fiberoptiska kontakten | SC |
| Maximal överföringshastighet avstånd | 2000 m |
| Våglängd | 1310 nm |
| Fiber läge struktur | Flerläge |
| Fiber kabeldiameter stöds | 50/125,62.5/125 um |
| Länkbudget | 7 dB |
| Medeltid mellan fel (MTBF) | 510304 h |
| Intern | No |
| Indikationer | Ja |
| Produktens färg | Svart |
| Material, hölje | Metall |
| Internationellt skydd (IP) kod | IP40 |
| DIN-skena | Yes |
| Certifiering | FCC, CE |
| Spänning | 12 - 60 V |
| Strömförbrukning (max) | 1,92 W |
| Bredd | 60 mm |
| Djup | 50 mm |
| Höjd | 35 mm |
| Vikt | 88 g |
| Temperatur vid drift | -40 - 75 ° C |
| Snabbinstallationsguide | Yes |
